Pressure-Reducing Dome-Loaded

Swagelok® Pressure-Reducing, Dome-Loaded Regulators

pressure-reducing-dome-loaded-regulatorsPressure-reducing dome-loaded regulators deliver many options and features that include compact sizes, dome- and air-loaded styles, piston sensing, balanced designs, high-purity, high-flow, integral pilot-operated, and differential. They can be ordered as both venting and non-venting. Multiple gauge connection configurations are also available.





Air-Loaded, Ratio Pressure-Reducing Regulators (RA Series)

Features

  • Balanced valve design
  • Diaphragm sensing
  • Air loaded pressure control with a choice of pilot-to-outlet pressure ratios
  • Remote control
  • Self venting
  • Choice of dome-to outlet pressure ratios: 1 to 15, 1 to 40, or 1 to 70
  • Pneumatic actuation by spring-loaded regulator or proportional air-loaded-pressure-reducing-dome-loaded-regulatorsregulator
  • View catalog information

Options

  • NACE MR0175/ISO 15156-compliant models
  • Special cleaning to ASTM G93 Level C
  • Gauge connection-choice of 4 configurations



Differential Pressure, Dome-Loaded Pressure Reducing Regulators (RD[H]6DP Series)

differential-pressure-reducing-dome-loaded-regulatorsFeatures


Options

  • NACE MR0175/ISO 15156-compliant models
  • Special cleaning to ASTM G93 Level C
  • Gauge connection-choice of 4 configurations



Compact, Dome Loaded Pressure-Reducing Regulators (RD2 Series)

Features

  •  Piston sensing
  •  Integral 25 μm filter
  •  Cartridge valve assembly for ease of service
  •  Bottom mounting
  •  Panel mounting-no disassembly required
  •  View catalog information

compact-general-purpose-pressure-reducing-dome-loaded-regulatorsOptions

  •  No filter
  •  NACE MR0175/ISO 15156 (non-venting models only)
  •  Special cleaning to ASTM G93 Level C
  •  Panel mounting kit-no disassembly required

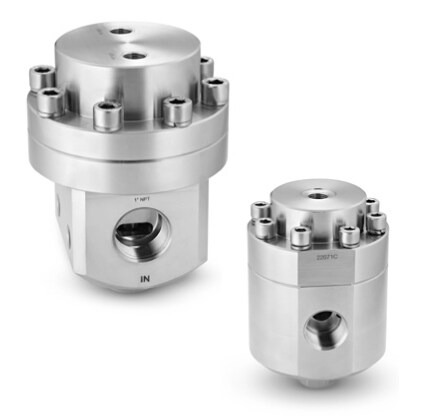

General-Purpose, Dome-Loaded Pressure-Reducing Regulators (RD[H]6 and RD[H]8 Series)

Features

  • Balanced valve design
  • Diaphragm sensing
  • Dome-to-outlet pressure ratio 1:1
  • Outlet gauge port: 1/4 in. female NPT
  • View catalog information

Optionsgeneral-purpose-pressure-reducing-dome-loaded-regulators

  • Pilot regulator
  • NACE MR0175/ISO 15156-compliant models
  • Special cleaning to ASTM G93 Level C
  • Gauge connections-choice of 4 configurations



General Purpose, Dome-Loaded Pressure-Reducing Regulators (RD[H]10 Series)

Features

  • Balanced valve design
  • Diaphragm sensing
  • Dome-to-outlet pressure ratio 1:1
  • Large dome for improved stability
  • View catalog information

Optionsgeneral-purpose-pressure-reducing-dome-loaded-regulators

  • Pilot regulator for improved performance
  • External feedback (EF) for improved performance
    • EF to pilot regulator limited to 290 psig (20 bar)
    • EF to main regulator limited by standard outlet pressure range
  • NACE MR0175/ISO 15156-compliant models
  • Special cleaning to ASTM G93 Level C
  • Gauge connections

High-Purity, High-Flow Gas Regulators (HF Series)

high-purity-high-flow-gas-pressure-reducing-dome-loaded-regulatorsSwagelok® HF series gas pressure regulators use a gas-actuated pressure-sensing assembly to precisely control outlet pressure. A slight decrease or increase in the outlet pressure causes the pressure-sensing assembly to expand or contract, respectively. The expansion or contraction of the pressure-sensing assembly moves the poppet to provide precise pressure control.



Features

  • Compact, high-flow design
    • Less than half the size of conventional diaphragm regulators
    • Flows up to 300 std L/min
  • Innovative gas-actuated pressure-sensing assembly
    • Low supply-pressure effect ensures precise pressure control
    • Low droop eliminates the need for adjustment in many systems
    • Outlet tolerates maximum rated inlet pressure without damage
  • Self-centering poppet
    • Minimizes outlet pressure creep
  • Tamper-free design
    • Reduces potential of imporper adjustment
    • Simplifies installation
  • High-purity design
    • Tied poppet for clean operation and positive shutoff
    • All-welded design - no seals to atmosphere
    • 5 μin. Ra electropolished finish
    • 316L VIM-VAR stainless steel body
  • Choice of end connecion/mounting styles
    • 1/4 in. VCR® split-nut connections
    • 1/4 in. and 3/8 in. butt weld connections
    • IGC™ II surface mount

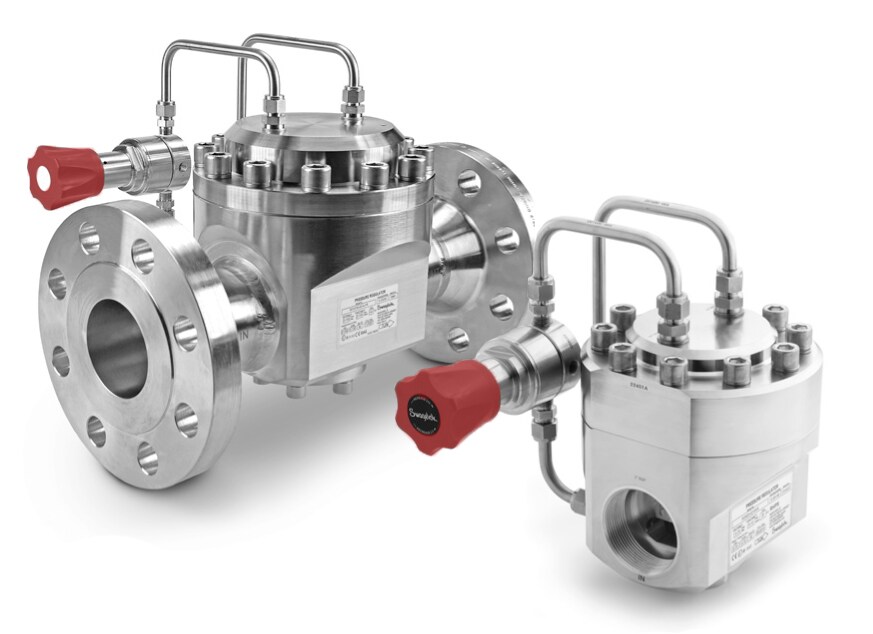

Integral Pilot-Operated, Dome-Loaded Pressure-Reducing Regulators (RD[H]15 and RD[H]20 Series)

Features

  • Balanced valve design
  • Integral pilot valve
  • 2-path control
  • Diaphragm sensing
  • Dome-to-outlet pressure ratio 1:1
  • Dependency: 0.3% of inlet pressure drop
  • Large dome for improved stability
  • View catalog information

Options

  • External feedback (EF) for improved performance
    • EF to pilot regulator limited to 290 psig (20 bar)integral-pilot-2-path-control-pressure-reducing-dome-loaded-regulators
    • EF to main regulator limited by standard outlet pressure range
  • NACE MR0175/ISO 15156-compliant models
  • Special cleaning to ASTM G93 Level C



Integral Pilot-Operated, Dome-Loaded Pressure-Reducing Regulators (RD[H]25, RD[H]30, and RD[H]40 Series)

Features

  • Balanced valve design
  • Integral pilot valve
  • 2-path control
  • Diaphragm sensing
  • Dome-to-outlet pressure ratio 1:1
  • Dependency: 0.8% of inlet pressure drop, RD(H)25 only
  • Large dome for improved stability
  • View catalog information

Optionsintegral-pilot-2-path-control-pressure-reducing-dome-loaded-regulators

  • External feedback (EF) for improved performance
    • EF to pilot regulator limited to 290 psig (20 bar)
    • EF to main regulator limited by standard outlet pressure range
  • NACE MR0175/ISO 15156-compliant models
  • Special cleaning to ASTM G93 Level C

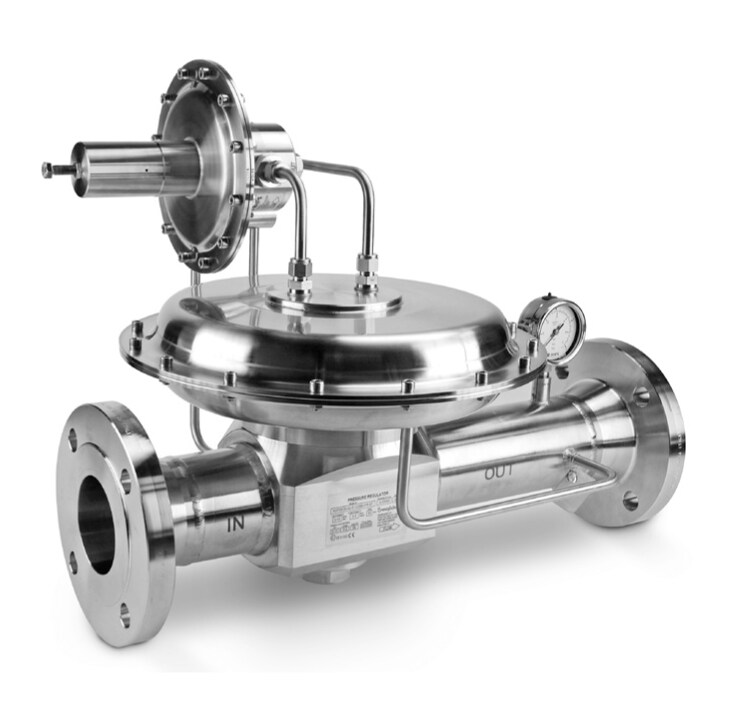

Integral Pilot-Operated, Dome-Loaded Pressure-Reducing Regulators for Low Pressure, High Sensitivity (LPRD20 and LPRD40 Series)

Features

  • Balanced valve design
  • Integral pilot valve
  • Integral feedback line
  • Inlet and outlet gauge connections
  • Diaphragm sensingintegral-pilot-high-sensitivity-pressure-reducing-dome-loaded-regulators
  • High CV
  • Large diaphragm for high accuracy
  • View catalog information

Options

  • NACE MR0175/ISO 15156-compliant models
  • Special cleaning to ASTM G93 Level C
