Home > Products > Regulators > Back-Pressure, Spring-Loaded

Back-Pressure, Spring-Loaded

compact-general-purpose-back-pressure-spring-loaded-regulators
Compact General-Purpose
general-purpose-back-pressure-spring-loaded-regulators
General-Purpose
high-pressure-back-pressure-spring-loaded-regulators
High-Pressure
KFB - High Flow, High Sensitivity Regulator
High-Sensitivity
medium-to-high-pressure-back-pressure-spring-loaded-regulators
Medium- to High-Pressure
View Products 61 products available.

Not all parts are loaded into our estore. If you can't find what you are looking for, click here.

Swagelok® Back-Pressure, Spring-Loaded Regulators

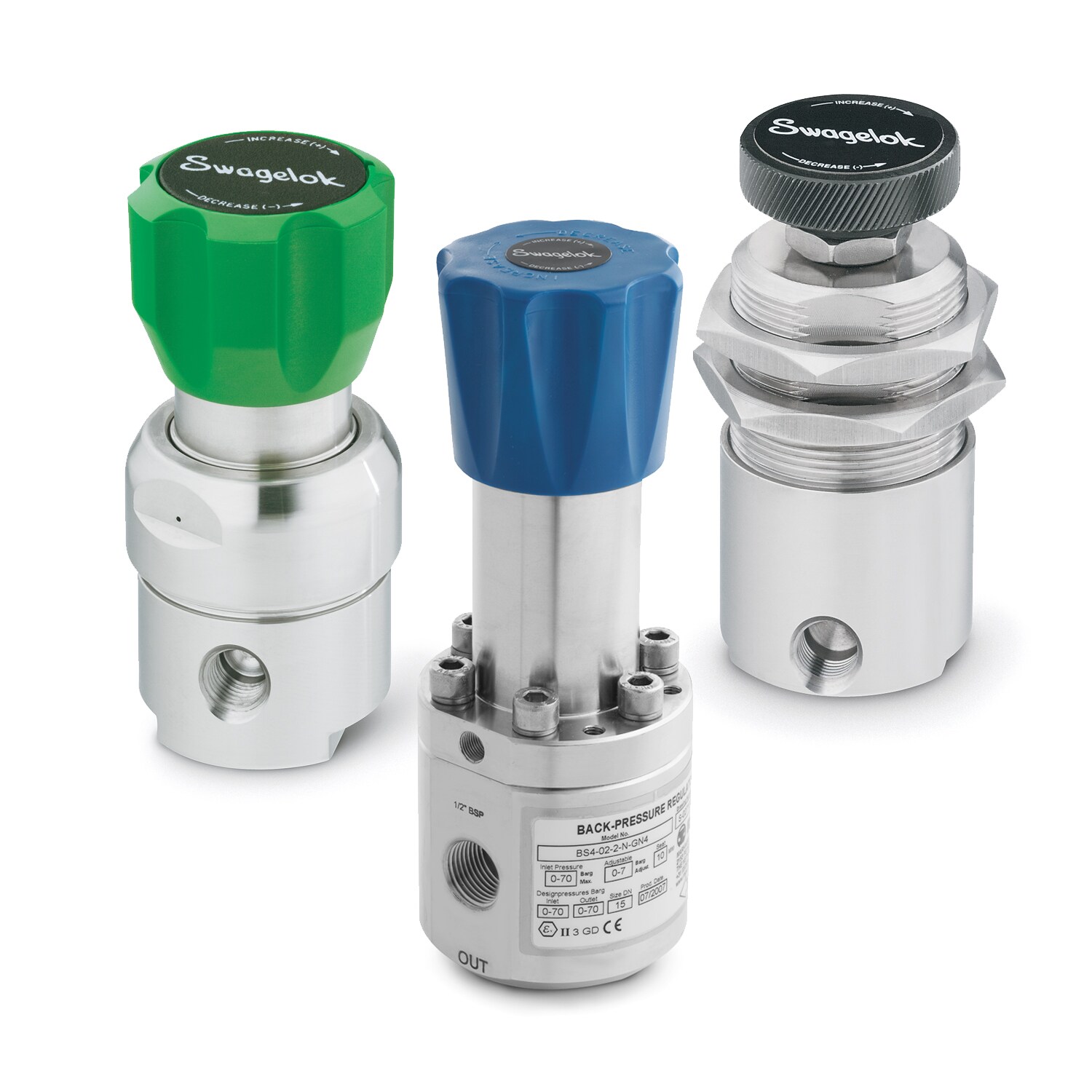

back pressure spring loaded regulatorBack-pressure spring-loaded regulators are designed to maintain back-pressure control in analytical or process systems upstream of the regulator, high-flow applications, portable or laboratory analytical systems, gas or liquid applications, and high-sensitivity conditions. They are available in various styles to adapt to any setting or requirement. Their features make possible minimal leakage potential, low internal volume,  lightweight or compact designs, panel-mounting, and more.





Compact Piston-Sensing Back-Pressure Regulators (KCB Series)

compact-general-purpose-back-pressure-spring-loaded-regulators

The KCB Series provides high sensitivity back-pressure control of sampling conditioning systems. It is ideally suited for use in portable or laboratory analytical systems as well as being embedded in the instrument bays of OEM equipment or sampling cabinets.



Features
  • Low internal volume
  • Fully contained piston
  • Excellent flow characteristics with a CV  of 0.20
  • ANSI/ISA 76.00.02-compliant modular platform component (MPC) configuration available



Technical Data

Maximum Inlet Pressure

  • Equal to pressure control range

Pressure Control Ranges

  • 0 to 10 psig (0.68 bar) through 0 to 375 psig (25.8 bar)

Flow Coefficient (CV)

  • 0.20

Maximum Operating Temperature

  • 176ºF (80ºC) with PCTFE retainer seal
  •  392ºF (200ºC) with PEEK retainer seal

Weight

  • 1.0 lb (0.5 kg)

Ports

  • 1/8 in. female NPT inlet and outlet(s)
  •  MPC platform






Compact General Purpose Back-Pressure Regulators (BS2 and BSH2)

compact-general-purpose-back-pressure-spring-loaded-regulators

The BS2 and BSH2 back-pressure regulators are suitable for most gases and liquids. The BS2 and BSH2 regulators feature a choice of sensing types (diaphragm or piston), and seat and seal materials to accommodate a variety of pressure, temperature, and flow conditions. The BS2 and BSH2 regulators are available with 1/4 in. NPT end connections. The BS2 and BSH2 regulators are available with several options including a variety of gauge connection configurations, anti-tamper handle, special cleaning to ASTM G93 Level C, and NACE MR0175/ISO 15156-compliant models.



Features
  • Spring-loaded pressure control
  •  Diaphragm or piston sensing types
  • Knob or screw adjustment
  •  316L SS materials of construction for corrosion assistance
  • Maximum inlet pressure ratings: 507 to 10150 psig (35 to 700 bar)
  •  Choice of outlet pressure ranges: 0 to 10150 psig (0 to 700 bar)
  • View catalog information


General-Purpose Diaphragm-Sensing Back-Pressure Regulators (KBP Series)

KPB Series Medium to High Pressure Piston Sensing Back Pressure RegulatorsThe KBP series is a high-sensitivity, general-purpose regulator designed to control back-pressure levels in analytical or process systems upstream of the regulator.

The convoluted diaphragm provides excellent sensitivity and set-point repeatability. The metal-to-metal diaphragm seal minimizes the potential for leakage.



Features

  • Convoluted, nonperforated diaphragm
  • Metal-to-metal diaphragm seal
  • Low internal volume
  • Two-piece cap design provides linear load on the seal

Technical Data

Maximum Inlet Pressure

  • Equal to pressure control range
Pressure Control Ranges
  • 0 to 10 psig (0.68 bar) through 0 to 500 psig (34.4 bar)
Flow Coefficient (CV)
  • 0.20
Maximum Operating Temperature
  • 176ºF (80ºC) with PCTFE retainer seal
  • 392ºF (200ºC) with PEEK retainer seal
Weight
  • 2.4 lb (1.1 kg)
Ports
  • 1/4 in. female NPT inlet, outlet, and gauge ports (all body materials)
  • 1/4 in. tube stub inlet, outlet, and gauge ports (316 SS body material only)
  • 1/4 in. VCR inlet, outlet, and gauge ports (316 SS body material only)

General Purpose Back-Pressure Regulators (BS[H]4, BS[H]6, and BS[H]8 Series)

The BS(H)4/6/8 back-pressure regulators are suitable for most gases and liquids. The BS(H)4/6/8 regulators feature a choice of sensing types (diaphragm or piston), and seat and seal materials to accommodate a variety of pressure, temperature, and flow conditions. The BS(H)4/6/8 regulators are available in sizes from 1/2 to 1 inch with a choice of threaded or flange end connections.

high-pressure-back-pressure-spring-loaded-regulatorsThe BS(H)4/6/8 regulators are available with several options including a variety of gauge connection configurations, anti tamper handle, special cleaning to ASTM G93 Level C, and NACE MR0175/ISO 15156-compliant models.



Features


Options

  • Anti-tamper
  • NACE MR0175/ISA 15156-compliant models
  • Special cleaning to ASTM G93 Level C
  • Gauge connections-choice of 4 configurations

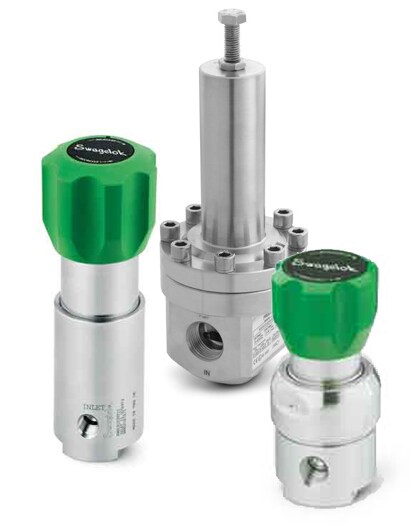

General Purpose Back-Pressure Regulators (BS[H]10 and BS[H]15 Series)

The BS(H)10/15 back-pressure regulators are suitable for most gases and liquids. The BS(H)10/15 regulators feature a choice of sensing types (diaphragm or piston), and seat and seal materials to accommodgeneral-purpose-back-pressure-spring-loaded-regulatorsate a variety of pressure, temperature, and flow conditions. The BS(H)10/15 regulators are available in sizes from 1 to 1 1/2 inches with a choice of threaded or flange end connections.

The BS(H)10/15 regulators are available with several options including a variety of gauge connection configurations, special cleaning to ASTM G93 Level C, and NACE MR0175/ISO 15156-compliant models.

Features

  • Balanced valve design
  • Diaphragm sensing: 0 to 290 psig (20 bar)
  • Piston sensing: 290 to 3628 psig (20 to 250 bar)

Options

  • NACE MR0175/ISO 15156-compliant models
  • Special cleaning to ASTM G93 Level C

High-Pressure Piston-Sensing Back-Pressure Regulators (KHB Series)

The KHB series provides control of back pressures up to 10000 psig (689 bar) with high sensitivity across the control range.



Features

  • Thrust roller bearing eases operation
  • Panel-mounting configuration available

Technical Data

Maximum Inlet Pressure

  • Equal to pressure control range

Pressure Control Ranges

  • 0 to 500 psig (34.4 bar) through 100 to 10000 psig (6.8 to 689 bar)

Flow Coefficient (CV)

  • 0.06 and 0.25

Maximum Operating Temperature

  • 212ºF (100ºC)

Weight

  • 5.7 lb (2.6 kg)

Ports

  • 1/4 in. female NPT inlet, outlet, and gauge ports

Spring-Loaded, High-Sensitivity Back-Pressure Regulators (LBS4 Series)

Features

Options

  • NACE MR0175/ISO 15156-compliant model
  • Special cleaning to ASTM G93 Level C

High-Flow, High-Sensitivity Diaphragm-Sensing Back-Pressure Regulators (KFB Series)

The KFB series regulator is designed to maintain back-pressure control in high-flow applications with a CV of 1.0.

Features

  • Large-diameter convoluted, nonperforated diaphragm for increased pressure sensitivity
  • Metal-to-metal diaphragm seal

Technical Data

Maximum Inlet Pressure

  • Equal to pressure control range
Pressure Control Ranges
  • 0 to 10 psig (0.68 bar) through 0 to 250 psig (17.2 bar)
Flow Coefficient (CV)
  • 1.0
Maximum Operating Temperature
  • 176ºF (80ºC) with PCTFE retainer seal
  • 392ºF (200ºC) with PEEK retainer seal
Weight
  • 4.4 lb (2.0 kg)
Ports
  • 1/2 in. female NPT inlet and outlet; 1/4 in. female NPT gauge port

Medium- to High-Pressure Piston-Sensing Back-Pressure Regulators (KPB Series)

The KPB series provides back-pressure control in gas or liquid applications. This compact and lightweight regulator provides and ideal pressure-control solution within high-density compact OEM equipment, as well as other applications.



Features

  • Integral high-pressure overrange protection
  • Lightweight, compact design

Technical Data

Maximum Inlet Pressure

  • Equal to pressure control range

Pressure Control Ranges

  • 0 to 1000 psig (68.9 bar) through 0 to 4000 psig (275 bar)

KPB Series Medium to High Pressure Piston Sensing Back Pressure RegulatorsFlow Coefficient (CV)

  • 0.06 and 0.2

Maximum Operating Temperature

  • 176ºF (80ºC) with PCTFE seat
  • 392ºF (200ºC) with PEEK seat

Weight

  • 2.5 lb (1.2 kg)

Ports

  • 1/4 in. female NPT inlet, outlet, and gauge ports
