Home > Products > Pre-Engineered Subsystems

Pre-Engineered Subsystems

CSM photo assembly
Calibration and Switching Modules
FLM Base model bypass only
Fast Loop Modules
FSM ABS plastic sun shade shown with mounting bracket
Field Station Modules
FDH typical swagelok fluid distribution header
Fluid Distribution Headers
Swagelok Sample Probe Module
Sample Probe Modules


Not all parts are loaded into our estore. If you can't find what you are looking for, click here.

Swagelok Pre-Engineered SubsystemsCSM Atmospheric Reference Valve

Swagelok now offers a series of predesigned and preassembled subsystems for use in all types of plants and facilities where fluids are being processed. Use Swagelok pre-engineered subsystems to create fully documented fluid sampling and control systems and bring consistency to your operations. Easy to install and operate, these subsystems offer the high quality and support you expect from Swagelok.

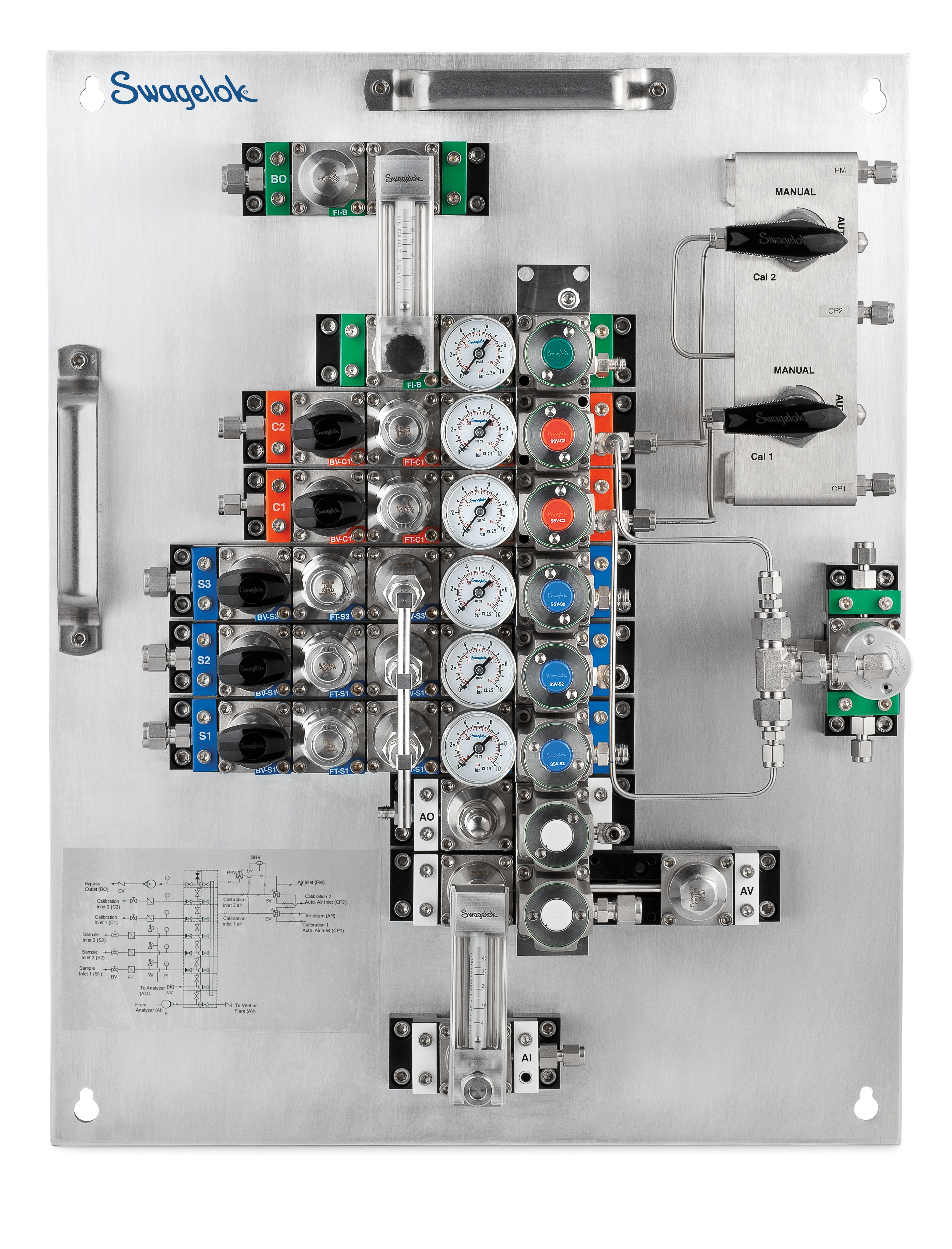

Calibration and Switching Modules

CSM photo assembly
  • Are highly configurable units built with Swagelok modular platform component (MPC) products
  • Perform final conditioning of sample before analysis
  • Select from up to 10 sample and 2 calibration streams using the Swagelok stream selector system (SSV series)

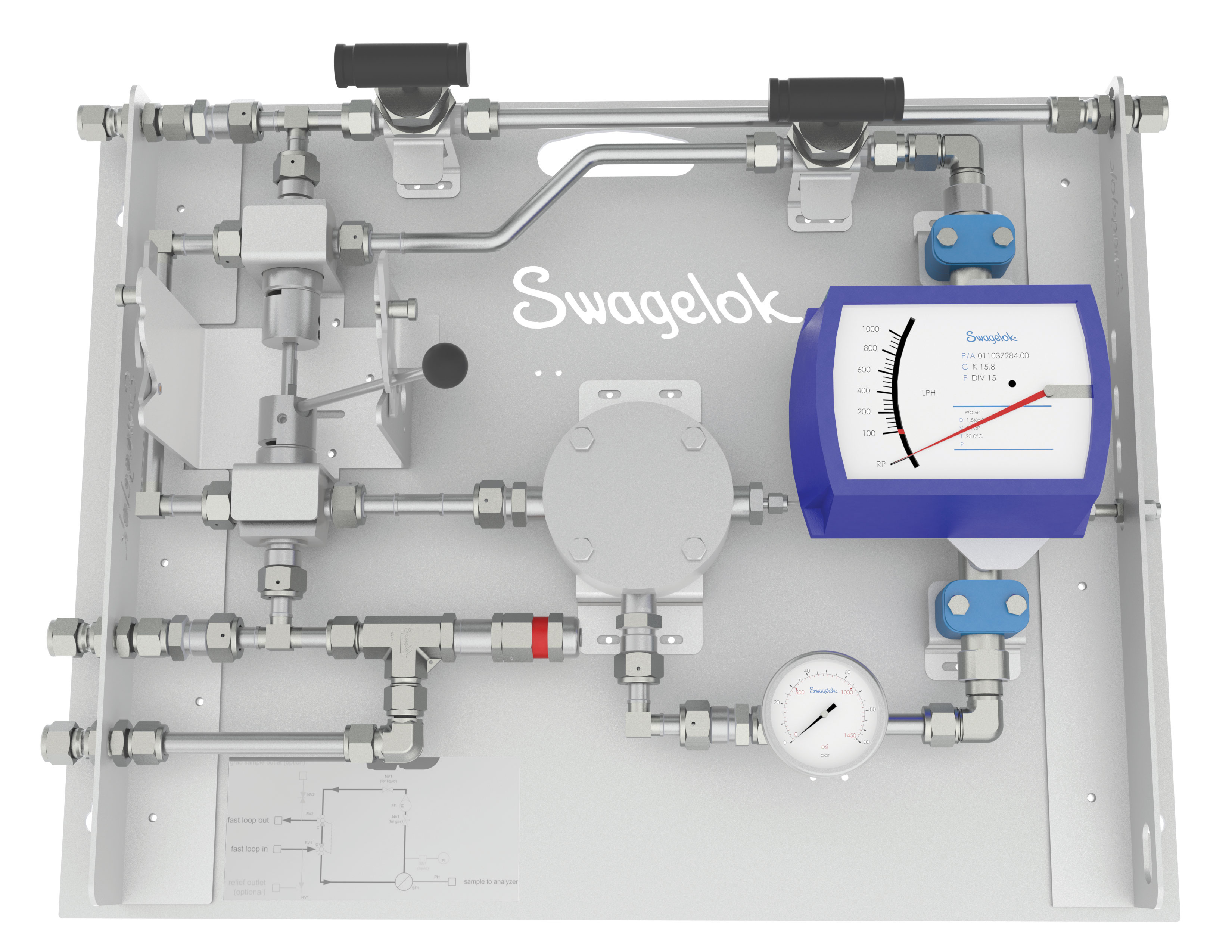

Fast Loop Modules

  • Designed for handling long transport lines from tap to analyzer
  • Minimum pressure drop for fastest response time
  • Interlocking handles help prevent incorrect sequence of operation
FLM Base model bypass only

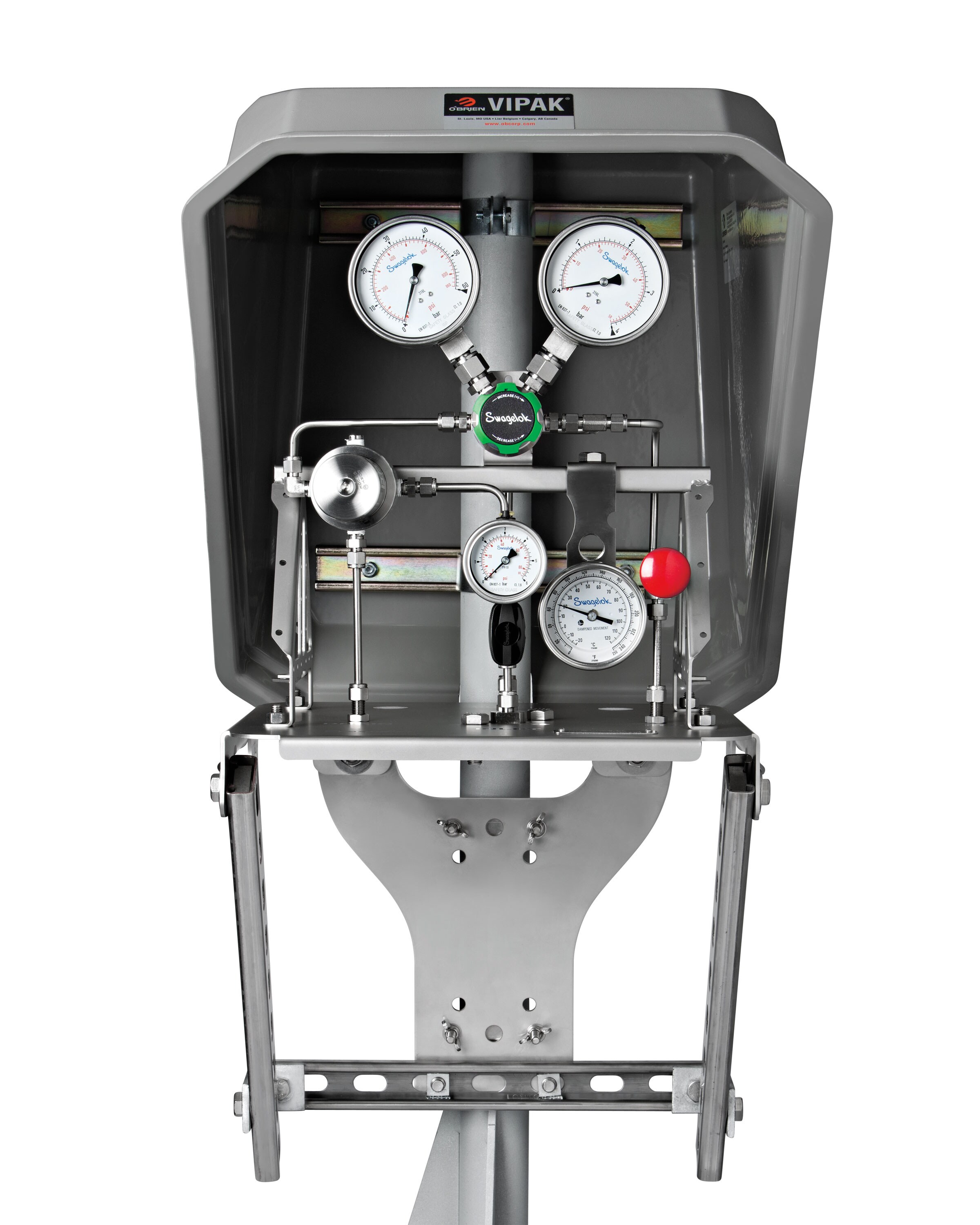

Field Station Modules

FSM enclosure 304 stainless steel
  • Preconditions a gas sample at the extraction point
  • Is highly configurable to match process conditions
  • Can mount directly to process nozzles

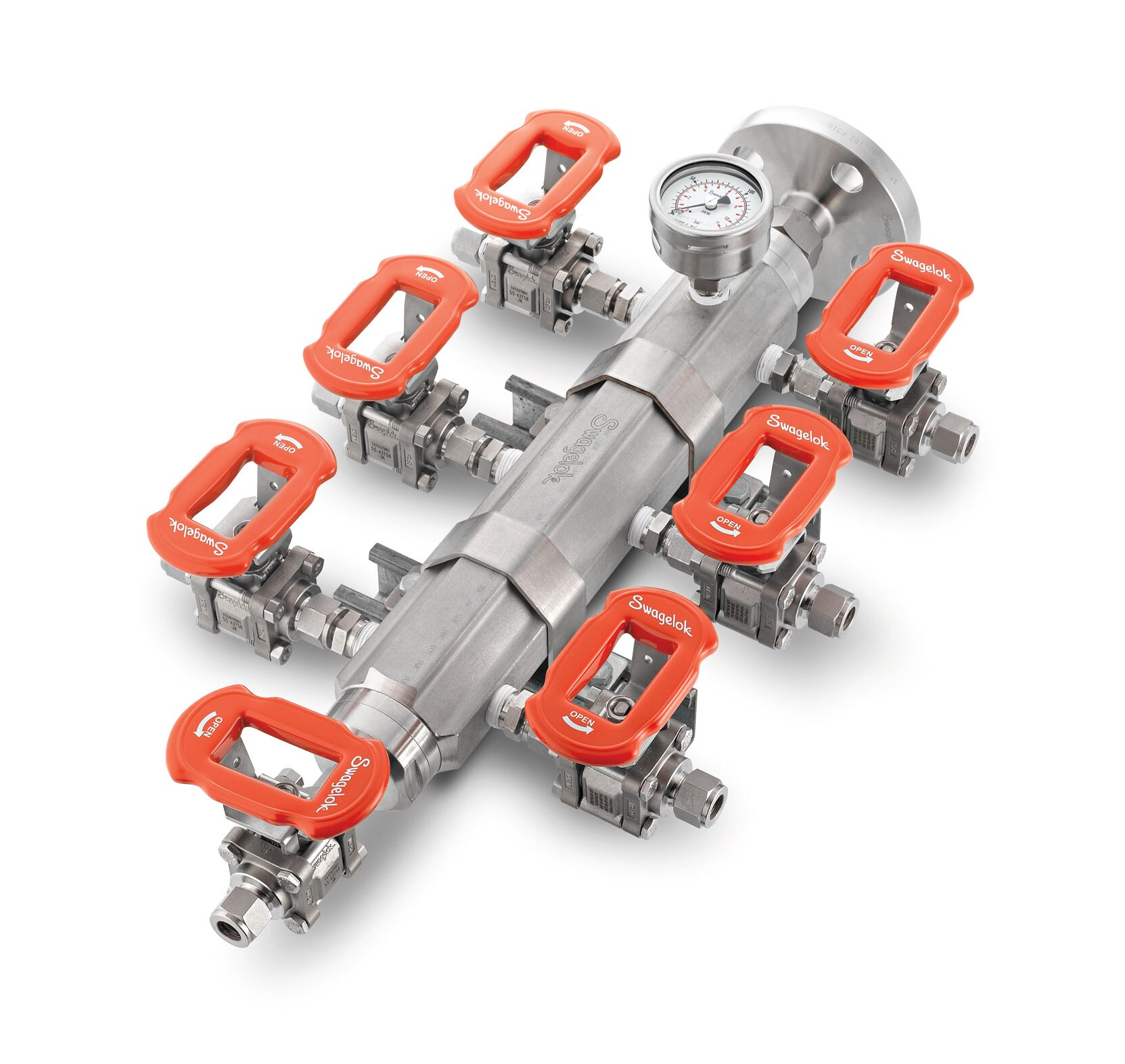

Fluid Distribution Headers

  • Versatile manifolds for gas and liquid applications
  • Swagelok components for reliability
  • Fluid distribution headers can be connected inline to create longer lengths
FDH typical swagelok fluid distribution header

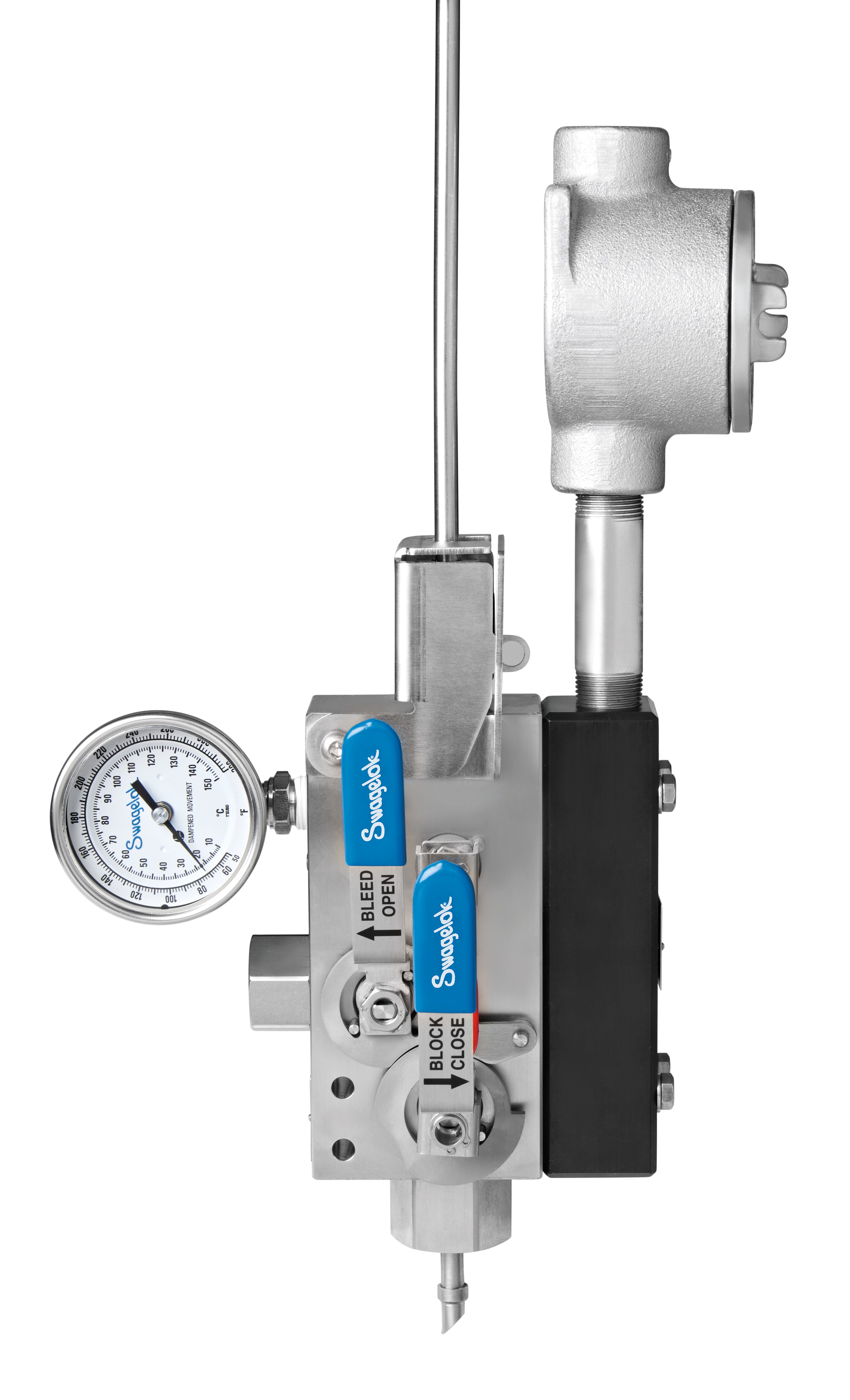

Sample Probe Modules

Swagelok Sample Probe Module
  • Wide range of probes for various applications
  • Probe interlocks protect equipment
  • Valve Interlocks improve safety of operation
