Home > Products > Fittings > B Type VCO® L-Ring Face Seal Fittings
Print
Send Page
Link To
Share

B Type VCO L-Ring Face Seal Fitting

b-type-vco-bodies-fittings

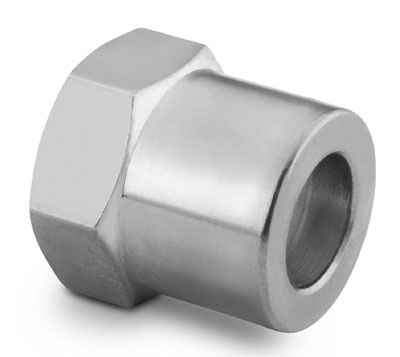

Bodies		 b-type-vco-nuts-fittings

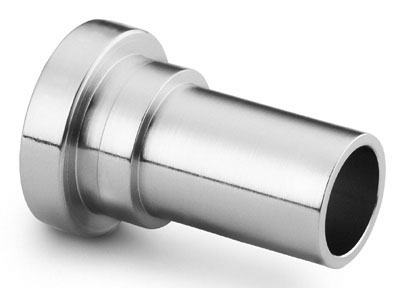

Nuts		 b-type-vco-glands-fittings
Glands
b-type-vco-spare-parts-fittings
Spare Parts and Accessories
View Products 20 products available.

Not all parts are loaded into our estore. If you can't find what you are looking for, click here.

Bodies
Nuts
MS-02-40JAEN
"B " type VCO
The “B” type VCO fitting uses an L-ring seal that eliminates concavity at the bore. This feature reduces the potential for media entrapment.
(MS-02-40.pdf)
Glands
Spare Parts and Accessories

"B" Type VCO® L-Ring Face Seal Fittings for Applications in Biotechnology and Pharmaceutics

B type VCO

The L-ring seal reduces the potential for media entrapment and should be used only with the “B” Type VCO body. Applications include steam cleaning lines, sampling, research and development, and process feed lines.

Specifications
Pressure Ratings
Temperature Ratings
Materials
• Bodies, glands
• Nuts
• L-rings
Up to 2500 psig (172 bar)
Up to 450°F (232°C)

316L stainless steel
316 stainless steel
Fluorocarbon FKM, ethylene propylene, PTFE, silicone

Features

"B" Type L-Ring Fitting Cutaway View
  • Reduced internal entrapment.
  • Lubricant-free L-ring seal.
  • Specially cleaned and packaged bodies and glands.
  • 20 µin. (0.51 µm) maximum Ra electropolished internal surface finish.
  • Tube butt weld end connections.
  • Controlled L-ring extrusion—no overtightening.
